BF-3093-4
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 118 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- PPR
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 0 mm
- Max Diameter
- 20 mm
- Service Diameter Range
- Up to 20 mm
- Annular Gap
- 6 mm
- Sealant Depth
- Depth of collar mm
Specimen size & details

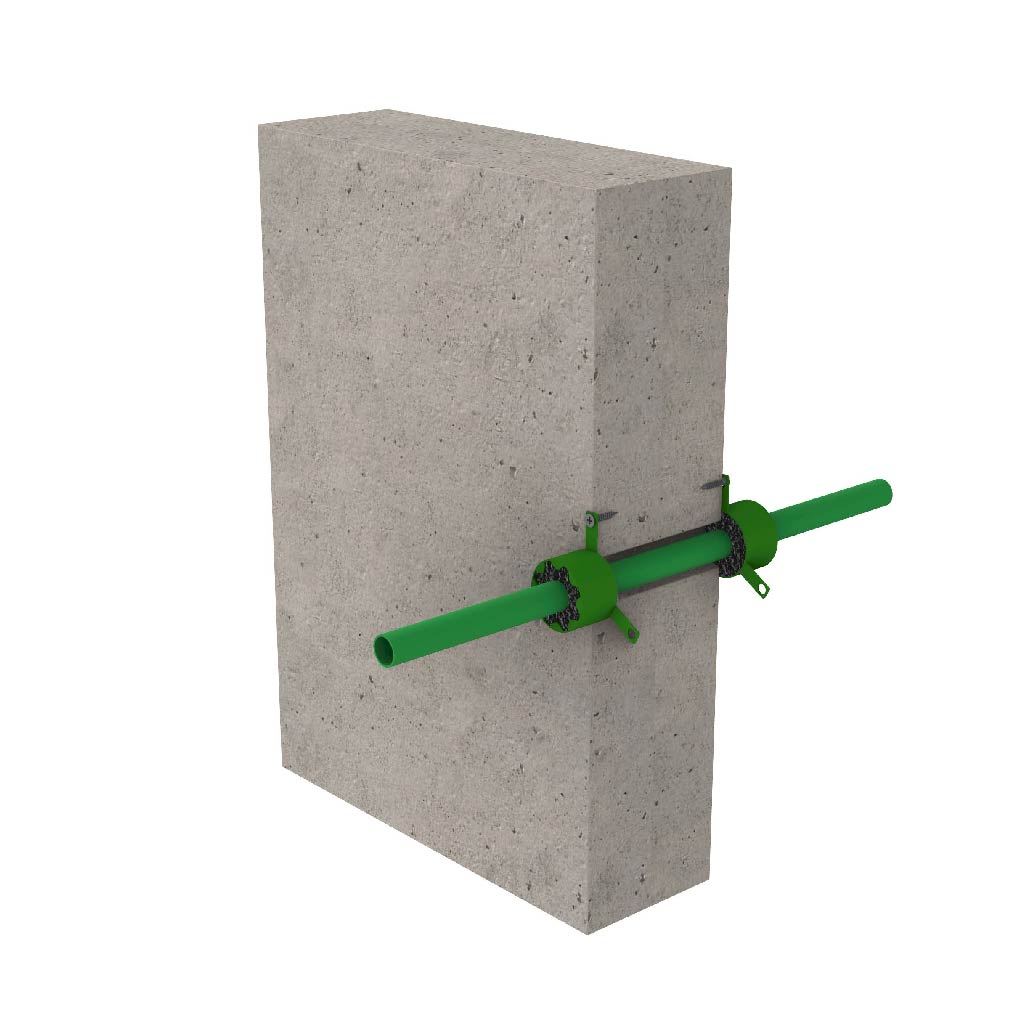

Up to 20 mm PP / PP-R pipe with 4.6 mm wall thickness. Sealant installed in the gap between the collar and pipe to the full depth of the collar, finished flush both sides. The system includes a 32 mm BOSS MaxiCollar™ installed to both sides.
