BF-3421-16
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Speedpanel / Korok (w/Buildup)
- Minimum Substrate Thickness
- 118 mm
- FRL / FRR
- -/60/60
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- PEX
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Min Diameter
- 16 mm
- Max Diameter
- 16 mm
- Service Diameter Range
- 16 mm
- Aperture
- 20 mm
Specimen size & details

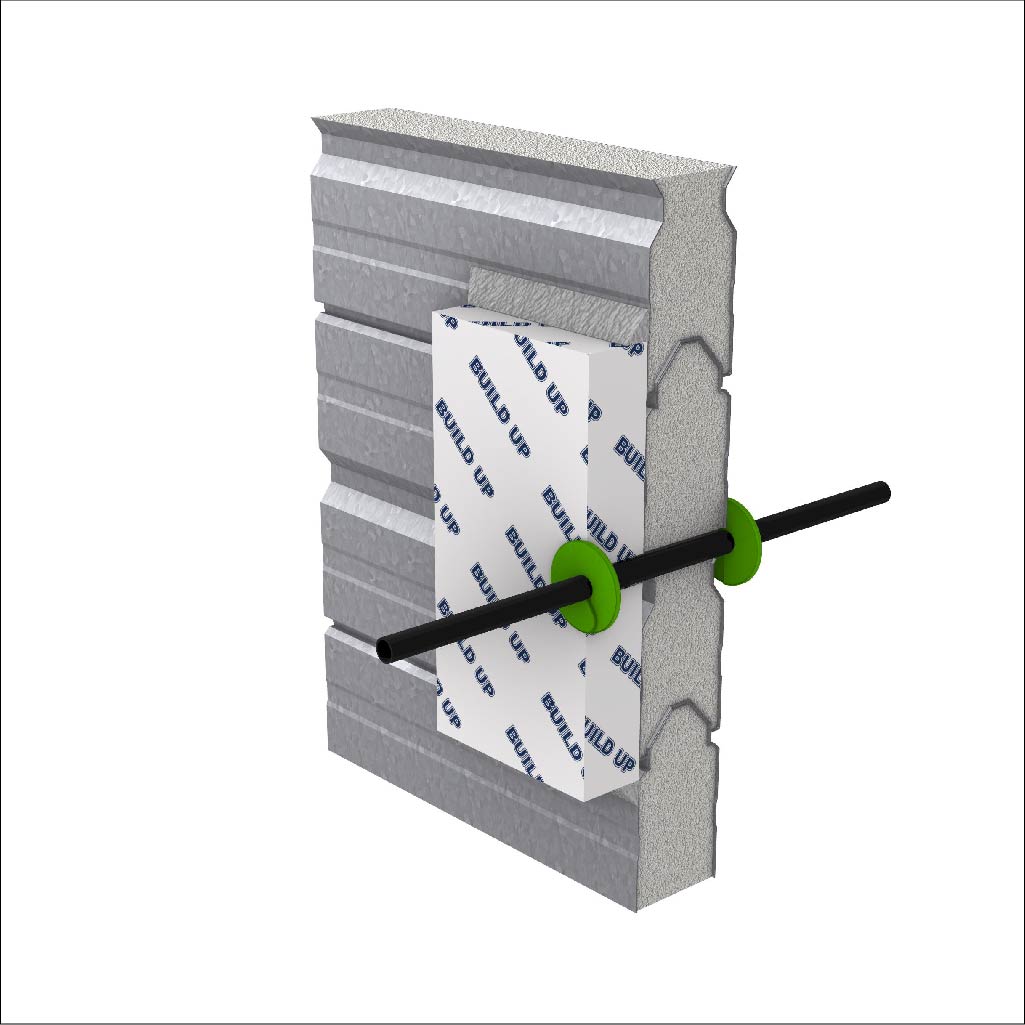

16 mm PEX pipe. Pipe installed in a 20 mm aperture, sealed with BOSS PenoPatch™ 60 mm on both sides.
