BF-3508-5
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Masonry
- Minimum Substrate Thickness
- 116 mm
- FRL / FRR
- 60/60/60
- Trade
- Construction (Linear Gaps / Blank Seals)
- Service
- Timber
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Aperture
- 85 x 130 mm
- Annular Gap
- 20 mm
- Sealant Depth
- 13 mm
Specimen size & details

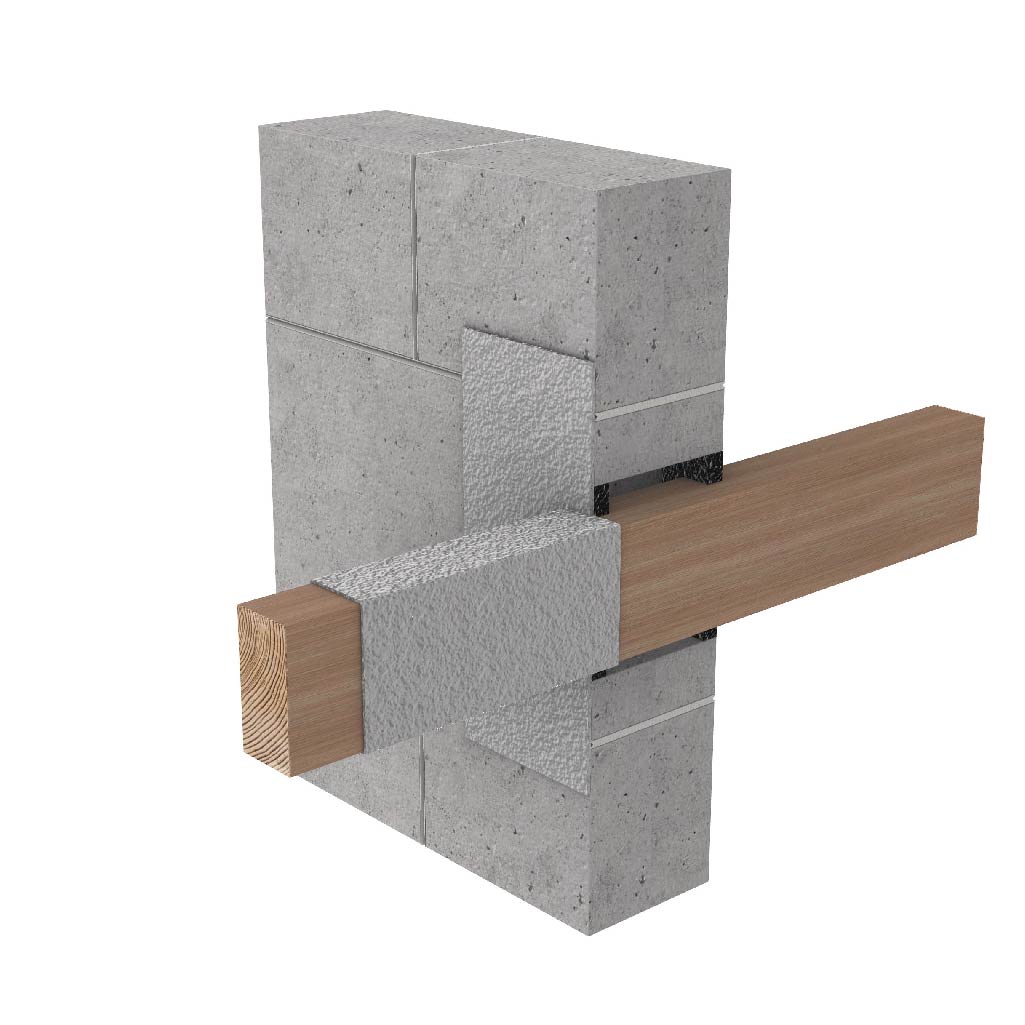

90 × 45 mm H1.2 radiata pine penetrates an aperture up to 85 mm wide × 130 mm high. FireMastic-HPE™ is applied to the 20 mm annular gap to a depth of 13 mm on both sides. A 1000 µ DFT patch of FBL-100 Intumescent Coating System (ICS), nominally 245 mm wide × 290 mm high, is applied around the aperture to the exposed side. FBL-100 ICS is also applied to all four sides of the timber at 1000 µ DFT for 500 mm along its length to the exposed side.
