FX Fire Collars™

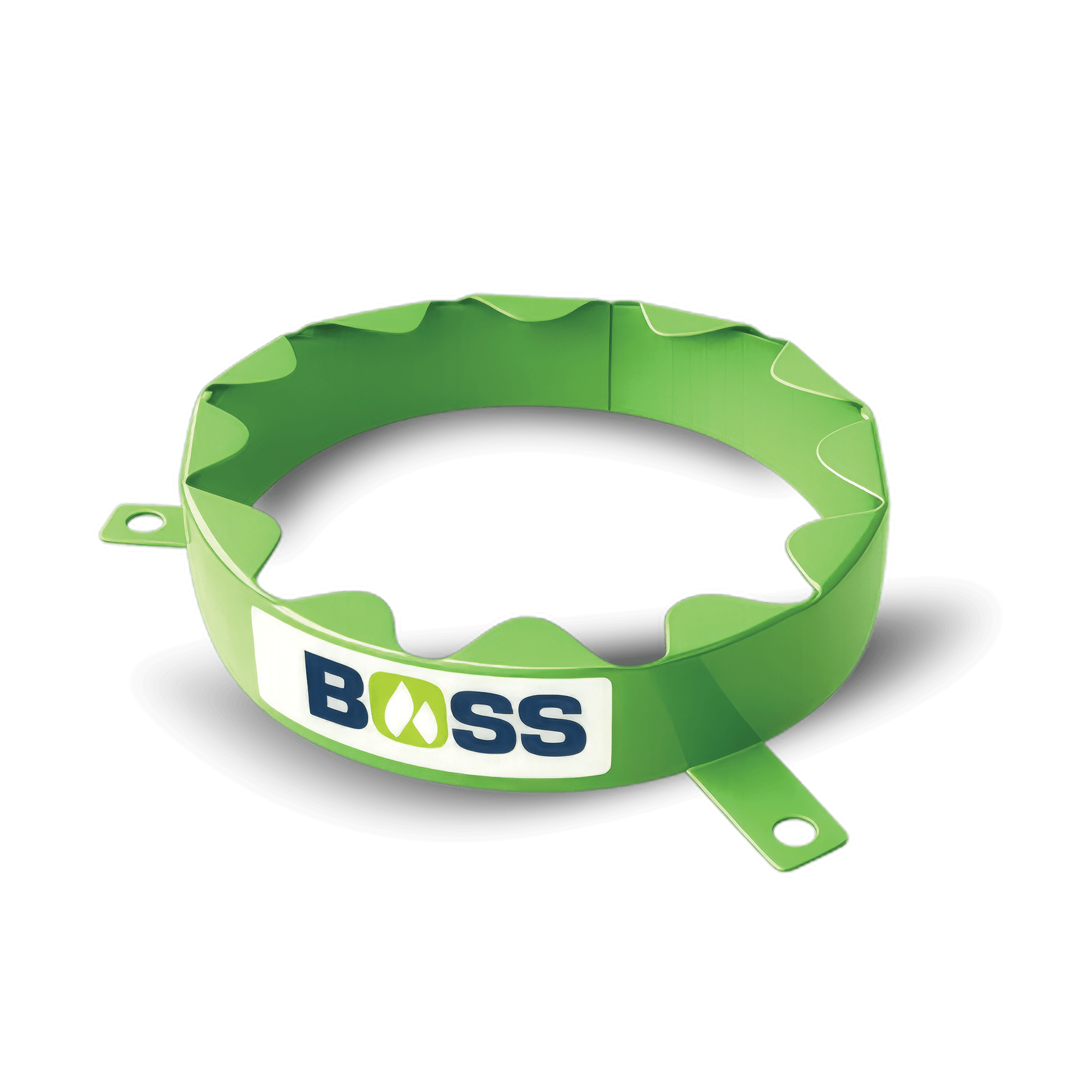

The BOSS FX Fire Collar™ is a cost-effective retrofit fire collar for sealing medium HVAC and electrical service bundles where they pass through fire-rated walls and floors. The steel chassis fits around new or existing services and is filled with intumescent infill to the depth of the collar. In a fire event, the intumescent swells to close off the gaps left as combustible services melt, holding compartmentation and preventing the spread of fire, smoke and hot gases between compartments.
The FX Fire Collar™ is built for the middle ground. It handles bundles that are too large or too congested for a sealant alone, yet not large enough to warrant a multi-transit device. A key advantage is that the collar controls the infill depth, so compliance is measured rather than guessed. Available in six sizes and approved across fire-rated plasterboard, concrete and masonry walls, and concrete floor slabs, the FX Fire Collar™ carries test approvals to AS1530.4:2014 & AS4072.1-2005, achieving FRL ratings of 60 and 120 minutes depending on system configuration. Approved services include pair coil, lagged copper pipes, condensate drains, and power and comms cables.
| Part ID : | MC-25 |
|---|---|
| Size : | Refer collar dimensions table in Technical Data Sheet. |
Applications
- Medium HVAC service bundles
- Larger lagged copper pipe pairs and pair coil
- Condensate drains
- Medium cable bundles – power, data, coax and fire alarm
- Power and comms cables
- Fire-rated walls and concrete floor slabs
Key Benefits
- 1 hour and 2 hour FRL performance
- Cost-effective, chassis-only design
- Suitable for new builds and retrofit environments
- Retrofits around existing services
- Controls infill depth for easy compliance, so there is no guesswork
- The practical option between sealants and multi-transit devices
- Approved for fire-rated plasterboard, concrete and masonry walls, and concrete floor slabs
- Approved to AS1530.4:2014 & AS4072.1-2005
Testing
The BOSS FX Fire Collar™ has fire test approvals to AS1530.4:2014 and AS4072.1-2005, achieving 60 and 120-minute FRL ratings depending on services, aperture and construction. It is suitable for installation across single and double-layer plasterboard and concrete or masonry walls, and concrete floor slabs. Performance must be confirmed using the BOSS Fire System Matrix, which provides configuration-specific system evidence and installation requirements.
