BF-2232-4
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Concrete
- Minimum Substrate Thickness
- 118 mm
- FRL / FRR
- -/45/30
- Trade
- Plumbing / Hydraulic / Active Fire
- Service
- PEX
Fire-stopping products
Application dimensions
- Service Diameter Range
- 25 mm
- Aperture
- 36 mm
- Annular Gap
- 4.5 - 5.5 mm
- Sealant Depth
- 13 mm
- Sealant Fillet
- 0 mm
Specimen size & details

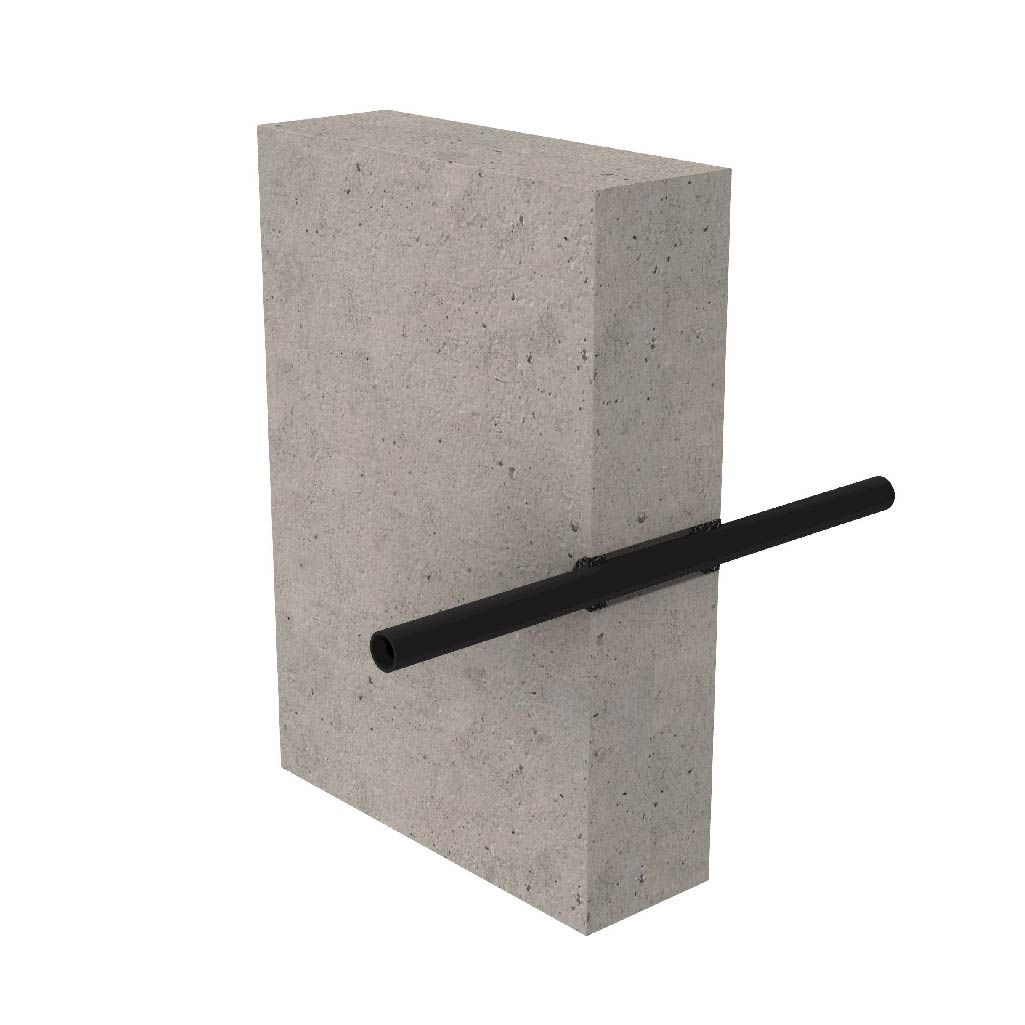

25 mm PEX pipe (AUSPEX 25 mm PEX pipe). HPE installed into the annular gap, 13 mm deep finished flush both sides.
