BF-3268-1
System details
- Type
- Service Penetration
- Element
- Wall
- Substrate
- Single Layer
- Minimum Substrate Thickness
- 118 mm
- FRL / FRR
- -/60/60
- Trade
- HVAC
- Service
- HVAC Bundles
- Fire Rating
- 60
Fire-stopping products
Application dimensions
- Aperture
- 137.2 mm
- Annular Gap
- 4.6 - 8.9 mm
- Sealant Depth
- Fill collar mm
Specimen size & details
HVAC Bundle:
• 1 x 32 mm + 25 mm copper pipes with 19 mm insulation
• 1 x 2C 1.5 mm2 Control cable
• 1 x 2C + E 2.5 mm2 TPS cable
• 1 x 20 mm x 2.0 mm wall thickness uPVC Condensate drain.

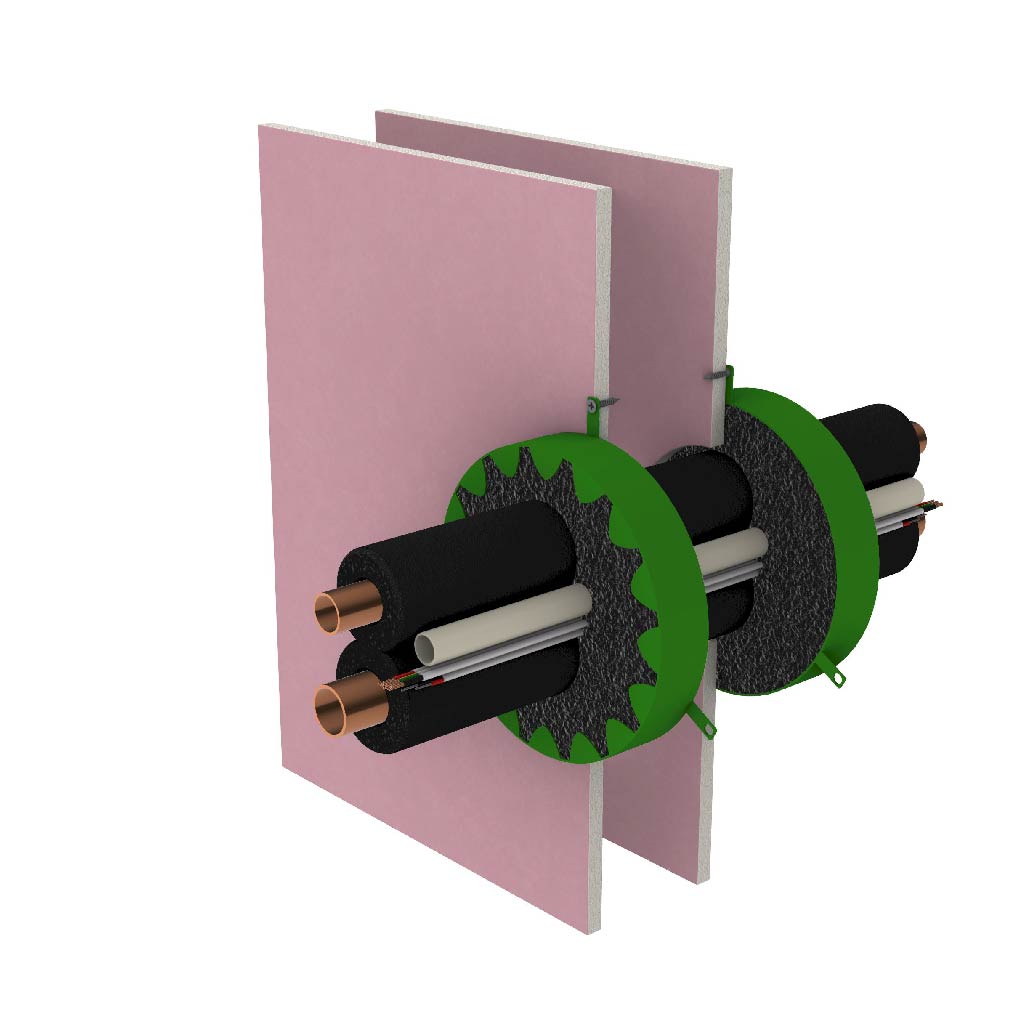

A 150 mm BOSS MaxiCollar™ (Shell only) to both sides of the wall. BOSS FireMastic-HPE™ sealant to the full depth of the collar around the services, finished flush with the surface of the collar.
