BF-3394-25
System details
- Type
- Service Penetration
- Element
- Floor
- Substrate
- Concrete Slab
- Minimum Substrate Thickness
- 120 mm
- FRL / FRR
- -/120/120
- Trade
- Electrical
- Service
- TPS
- Fire Rating
- 120
Fire-stopping products
Application dimensions
- Aperture
- 90.2 mm
- Sealant Depth
- Depth of collar mm
Specimen size & details

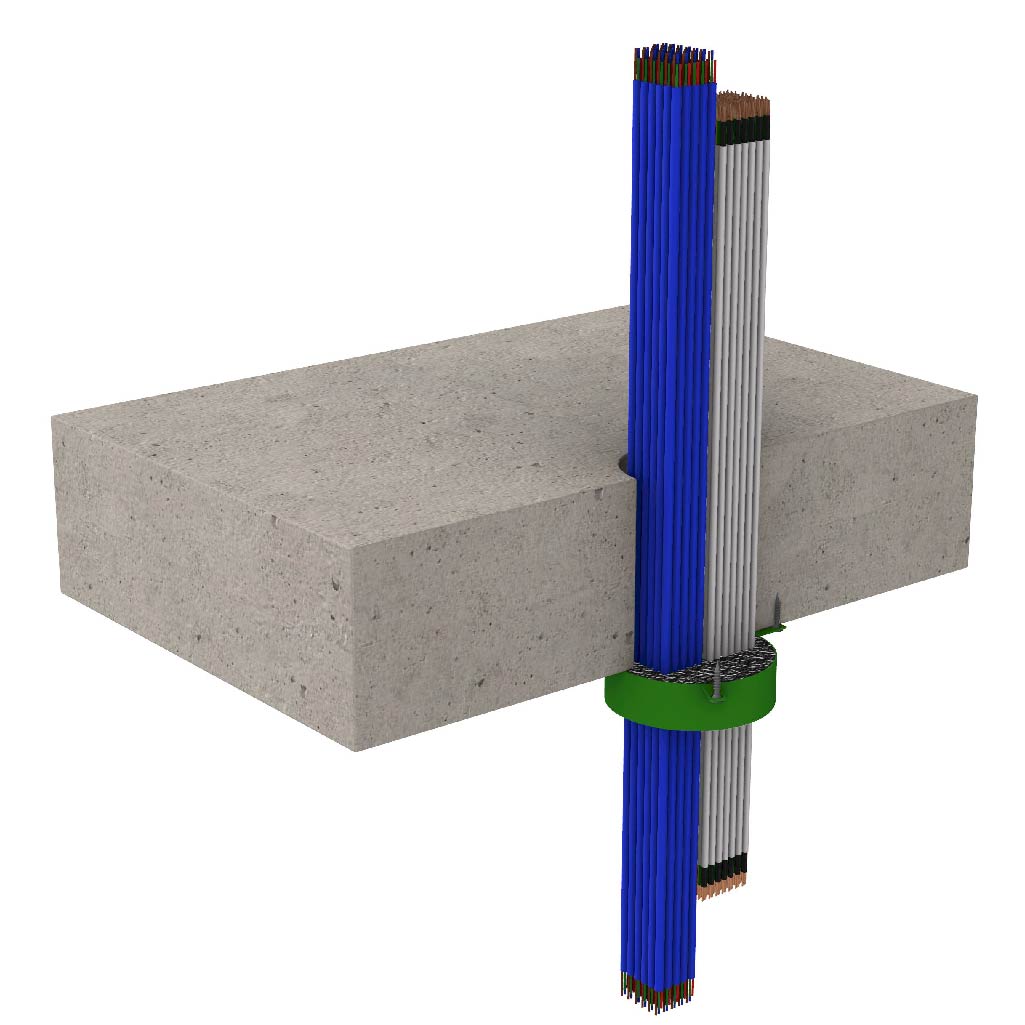

Bundle of electrical and communications cables, including:
• 38 x CAT6 cables
• 22 x 2.5 mm², 2C+E TPS power cables
80 mm BOSS MaxiCollar™ (Shell only) installed on the underside, sealed to its full depth with BOSS FireMastic-HPE™ sealant finished flush.
